ZD RACING RX12 1/12 Brushless 4WD Rally RC Car
$399.98
Tax excluded
The ZD RACING RX12 is a 1/12 scale brushless rally-style remote control car, combining high speed, realistic scale details, and rugged construction. With full-time 4WD, a powerful motor system, and adjustable suspension, this model is designed for both performance and realism — on and off the road.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
ZD RACING RX12 1/12 Brushless 4WD Rally RC Car

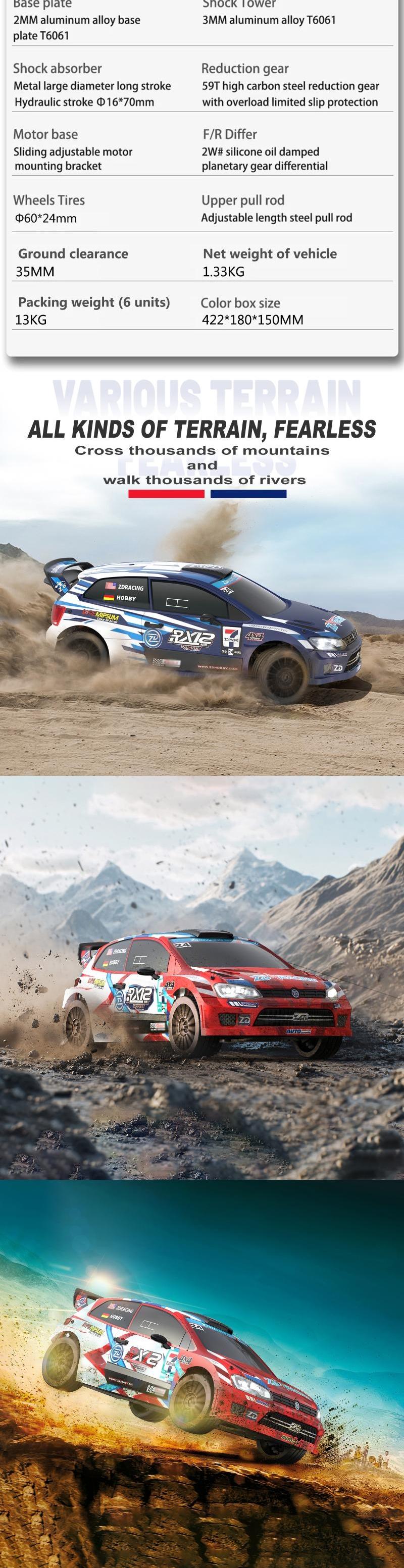

I. Basic Specifications
- Brand / Model: ZD RACING RX12
- Scale: 1/12
- Available Colors: Blue / Red
- Dimensions: 361 × 169 × 130 mm (L × W × H)
- Battery Tray: 114 × 35 mm, fits most 3S batteries
- Ground Clearance: 35 mm
- Weight: 1.33 kg
II. Power & Control System
- Top Speed: 50–80 km/h
- Motor: ROCKET 2845 Brushless Motor, 3600KV
- ESC: 35A Brushless Electronic Speed Controller, supports 2S–3S LiPo batteries
- Battery: 3S 35C 2200mAh LiPo Battery
- Transmitter: 2.4GHz 4-channel controller with a control range of up to 350 meters, featuring proportional throttle and steering for realistic driving feel
- Servo: 2.2kg waterproof metal gear servo for accurate and fast steering response

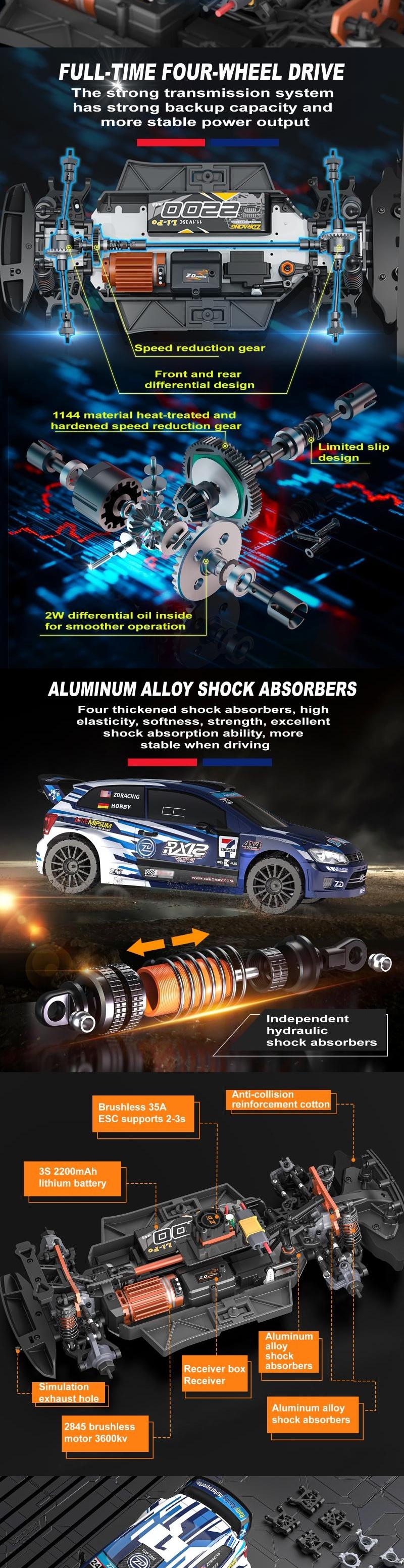

III. Drivetrain & Suspension
1.Drivetrain Highlights
- Drive System: Full-time 4WD
- Differentials: Front and rear silicone oil-filled planetary gear diffs
- Main Gear: 59T high carbon steel gear with overload slip clutch for drivetrain protection
- Differential Oil: Pre-filled with 2W diff oil for smooth and responsive handling
2.Suspension System
- Shocks: Φ16×70 mm large-bore oil-filled metal shocks with long travel
- Shock Towers: 3 mm T6061 aluminum alloy for rigidity
- Springs: Heavy-duty and resilient for consistent damping
- Impact Protection: Reinforced foam bumpers for enhanced durability
3.Chassis & Frame
- Chassis Plate: 2 mm T6061 aluminum alloy
- Motor Mount: Adjustable sliding-style for easy gear mesh tuning
- Turnbuckles: Adjustable steel upper links for fine suspension setup
IV. Tires & Terrain Capability
- Tire Material: Durable natural rubber
- Tire Size: Φ60 × 24 mm
- Off-Road Clearance: 35 mm ground clearance enables smooth performance on rough terrain
V. Realistic Design & LED Light System
1.Lighting Features
LED Lights: Functional front and rear LED lighting system with brake and turn signal effects for realistic night driving
2.Scale Appearance
Exterior Details: Includes air intake grille, carbon fiber-style roof, racing side mirrors, removable rear wing, race-style decals, and imitation exhaust vents — closely replicating a professional rally car look
VI. What's in the Box
- 1× ZD RACING RX12 RC Car
- 1× 2.4GHz Remote Controller
- 1× 3S LiPo Battery Charger
- 1× User Manual
- 1× 21T Motor Pinion Gear
- 1× Cross Wrench
- 1× 1.5mm L-shaped Hex Wrench
- 1× 2.0mm L-shaped Hex Wrench
- 1× Accessory Pack (Double-sided tape, zip ties)
