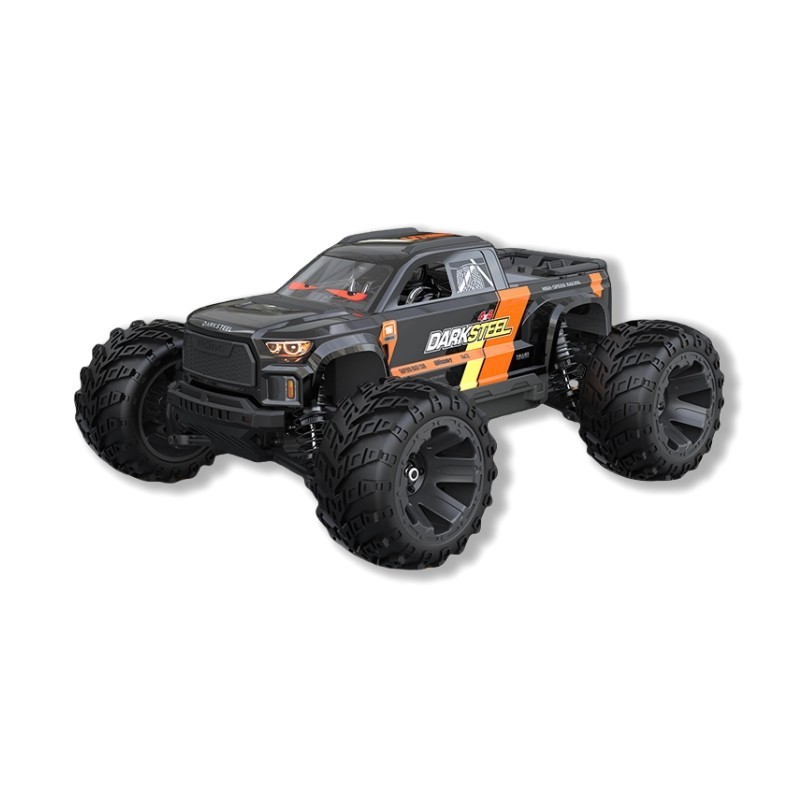

UDIR/C UD1610S 1/16 Brushless RC Car
$197.99
Tax excluded

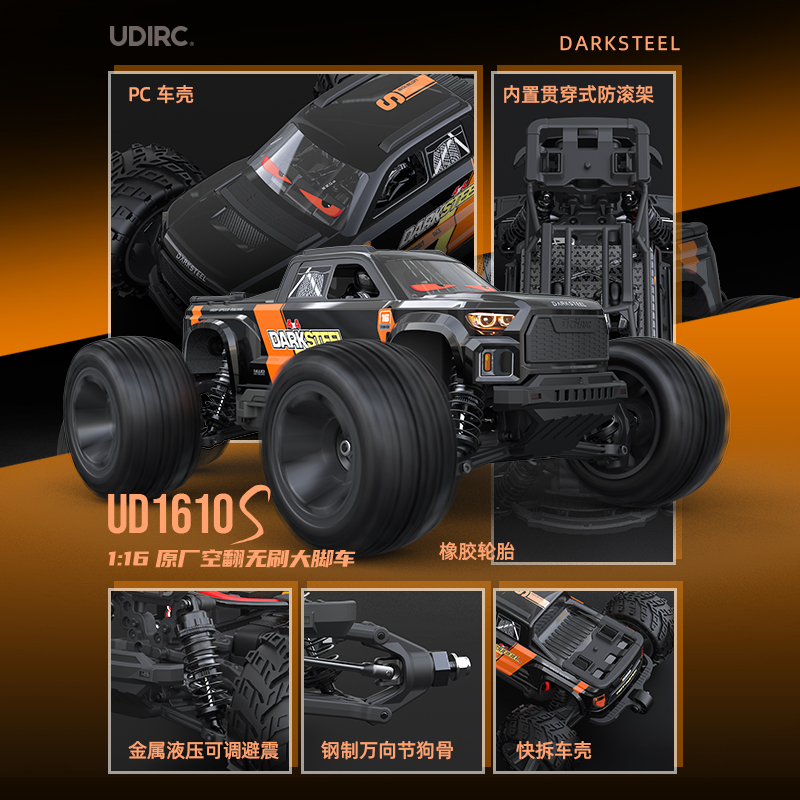

The UDIR/C UD1610S Snow Wolf is a 1/16 scale brushless high-speed RC car featuring a factory-tuned power system, full metal drivetrain, oil-filled shocks, and a quick-release body with built-in roll cage.
It supports 2S–3S Li-ion batteries and offers excellent durability and performance for hobbyists.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
UDIR/C UD1610S Snow Wolf (1/16 Brushless High-Speed Flip RC Car)
I. Basic informations
- Brand/Model: UDIR/C UD1610S
- Scale: 1/16
- Size: 292 × 224 × 127 mm
- Wheelbase :180 mm
- Track Width: 180 mm
- Ground Clearance: 24 mm
- Tires Rubber: Ø85 mm × 44.5 mm width
- Wheel Hub Adapter: 12 mm
- Battery Compartment: 110 × 34 × 25 mm
II. Key Highlights
- Factory-tuned "Mini Cannon" with outstanding performance
- Built-in roll cage, quick-release structure for easy maintenance
- Brushless power system, supports 2S–3S Li-ion batteries
- Standard metal drivetrain, oil-filled shocks, and pre-installed light wires
III. Body Structure & Materials
- Body Shell: PC material with inner painted finish, transparent front windshield and open side windows, secured with quick-release buckles and R-clips
- Bumpers & Suspension Arms: Made of new-formula nylon

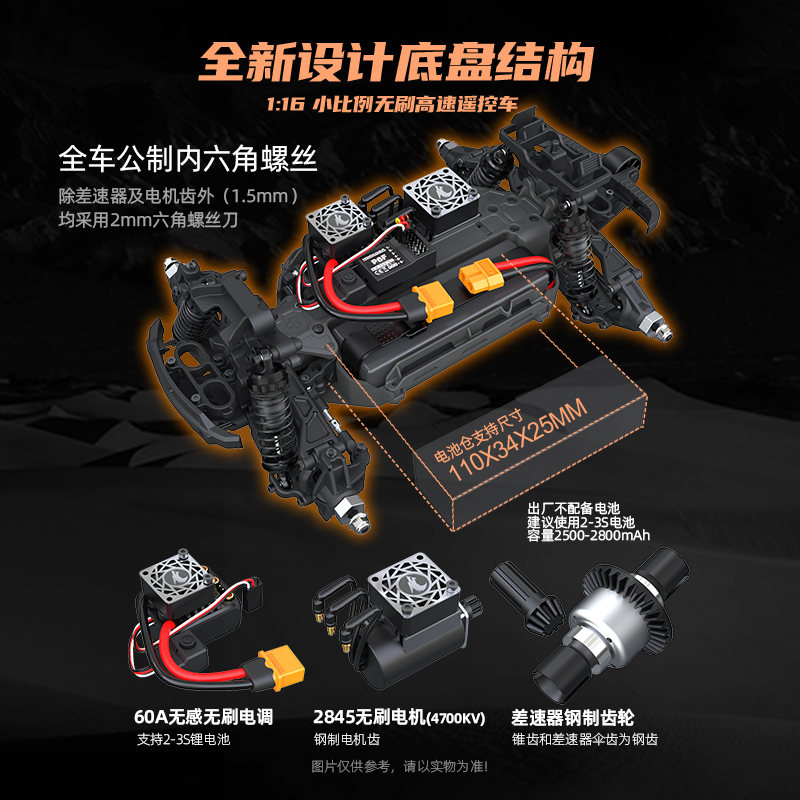

- Chassis Screws: Metric hex socket screws (mostly 2 mm; differential/motor gears use 1.5 mm)
- Main Driveshaft: 134 mm metal driveshaft
IV. Powertrain System
- Motor: 2845–4700KV brushless motor with steel pinion gear
- ESC: 60A sensorless brushless ESC, supports 2S–3S Li-ion batteries

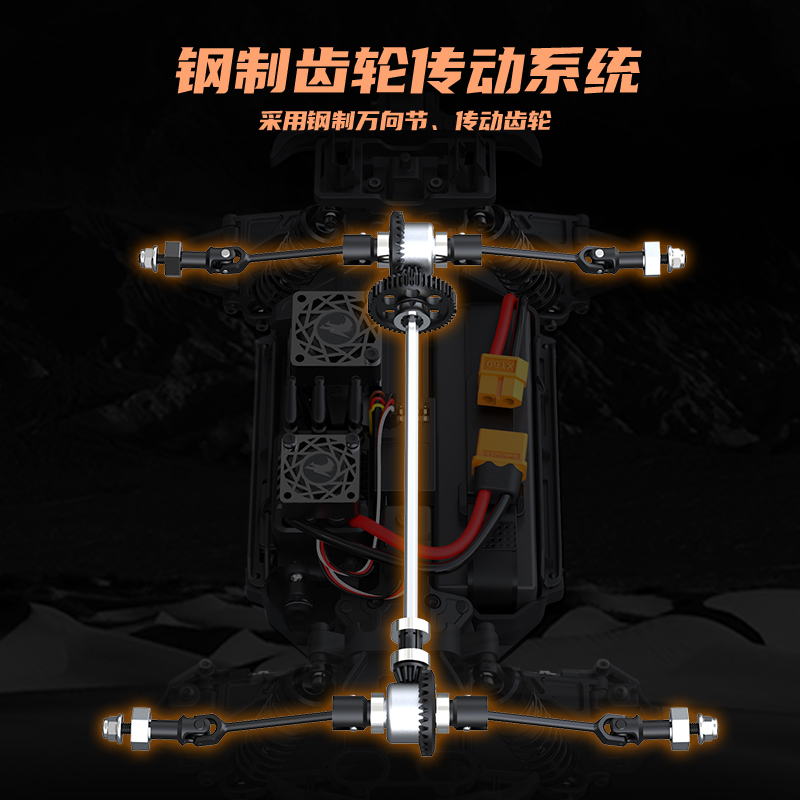

- Drivetrain Components: Steel dog bones and universal joints
- Gears:
- 10T 0.8M steel pinion
- 38T 0.8M steel spur gear
- 30T + 10T 1M steel differential bevel + pinion gears
- 16T metal sun gear + 8T metal planet gears
V. Suspension & Steering System
- Shock Absorbers: Front and rear adjustable aluminum alloy oil-filled shocks
- Full length: 76.3 mm; Compressed: 58.3 mm
- Steering Linkage: Adjustable metal linkage
- Steering Servo: 17g metal gear servo
VI. Electronics & Remote System
- Transmitter: DumboRC 2.4GHz 4-channel transmitter
- Receiver: 6-channel receiver
- Functions: Steering/throttle neutral point adjustment, travel range knobs, forward-reverse switch
- Battery & Connector: XT60 plug; supports 2S–3S 2500–2800mAh Li-ion batteries
⚠️ Battery and charger not included.
VII. Maintenance & Expandability

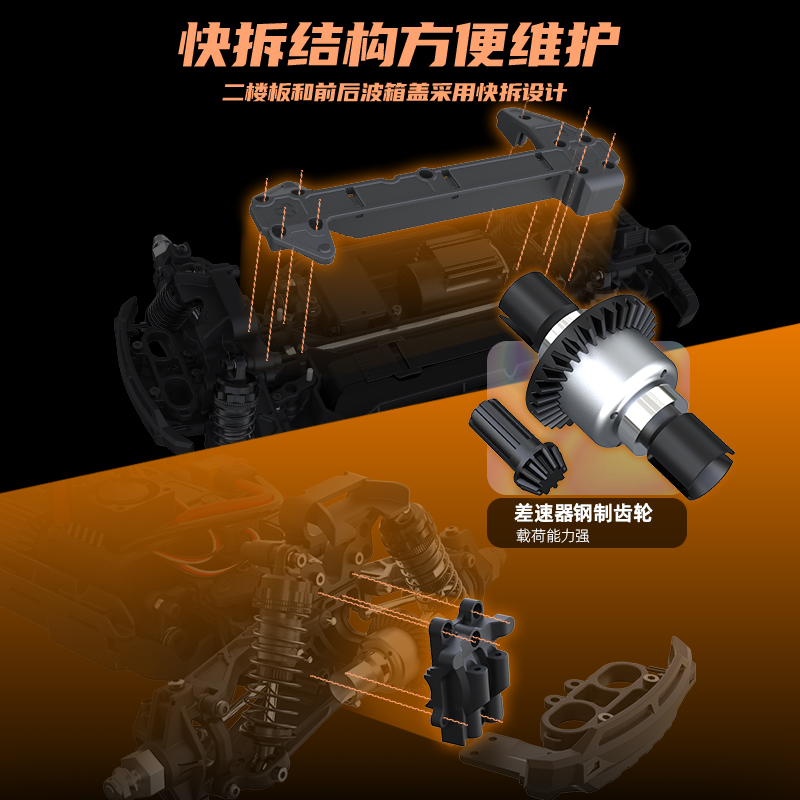

- Quick-Release Design: Front/rear gearbox covers and upper deck adopt tool-free disassembly
- Lighting Support: Pre-installed front and rear light wires (LEDs can be added by user)
